Re: 1972 Road Runner/GTX restoration

Post by 71ChallengerSE » Tue Feb 21, 2012 12:53 pm

Where did you get your door panels and how much did they cost?
1972 Road Runner RM23 Numbers Matching 340 4spd
1972 Satellite Sebring Plus EV2 1 Owner Family
1971 Challenger 383 R/T tribute
1971 Dodge Demon 'Sizzler'
1970 Dart Swinger 'Special' 340 pro-touring
1975 Dart Swinger/Scamp project confused 225 super six

User avatar
72RoadRunnerGTX
GTX (RS)
Posts: 591
Joined: Wed Dec 27, 2006 6:44 pm
My Cars: 1972 Road Runner/GTX
1972 Satellite Sebring
1972 Satellite Sebring(big block parts car)
Location: Seattle, Washington

Re: 1972 Road Runner/GTX restoration

Post by 72RoadRunnerGTX » Wed Feb 22, 2012 12:19 pm

The lowers are original to this car however modified for the power window switches. Uppers are from one of my donor Sebrings. Green originally but in very good condition, I painted them with a SEM vinyl product, so far holding up well. Still on the lookout for either some good usable rear uppers without a window crank hole. Had to plug these panels, although not very noticeable as they are now, would like to have the correct panels. Haven’t checked in a while, any reproduction options for these panels yet anybody know of?

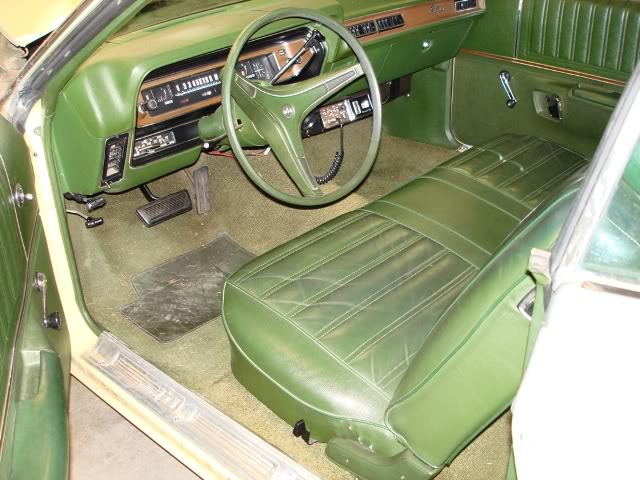

Plenty of nice left over green interior trim parts if anyone has a need.
Last edited by 72RoadRunnerGTX on Fri Jul 14, 2017 11:46 pm, edited 1 time in total.

User avatar
Eric
Site Admin
Posts: 2604
Joined: Wed Dec 24, 2003 12:45 am
Location: Central Ohio
Contact:

Re: 1972 Road Runner/GTX restoration

Post by Eric » Wed Feb 22, 2012 1:05 pm

Legendary reproduces upper panels now (at least they do for 71s....haven't checked on 72s)
AKA Butterscotch71....the road runner nest is out to win you over this year!Image

User avatar
71ChallengerSE
GTX (RS)
Posts: 144
Joined: Tue Oct 18, 2011 11:18 pm
My Cars: 1972 Road Runner RM23 Numbers Matching 340 4spd
1972 Satellite Sebring Plus EV2 1 Owner Family Special Order
1971 Challenger 383 R/T tribute
1971 Dodge Demon 'Sizzler'
1970 Dart Swinger 'Special' 340 pro-touring
1975 Dart Swinger/Scamp project confused 225 super six
Location: Virginia

Re: 1972 Road Runner/GTX restoration

Post by 71ChallengerSE » Wed Feb 22, 2012 10:18 pm

I have a 72 Satellite parts car, but every part I have need for my RR has already been stolen off of it. Its got to be the worst parts car ever!

Legendary didn't list any 72 panels. :?
1972 Road Runner RM23 Numbers Matching 340 4spd
1972 Satellite Sebring Plus EV2 1 Owner Family
1971 Challenger 383 R/T tribute
1971 Dodge Demon 'Sizzler'
1970 Dart Swinger 'Special' 340 pro-touring
1975 Dart Swinger/Scamp project confused 225 super six

ILUV72RRs
GTX (RS)
Posts: 226
Joined: Thu Apr 22, 2010 11:47 pm
My Cars: 1972 340 Road Runner, 1972 400 Road Runner

Re: 1972 Road Runner/GTX restoration

Post by ILUV72RRs » Wed Feb 22, 2012 11:35 pm

If you have the deluxe interior door panels. They're the same between '71 & '72. The standard interior panels are the same between '71 & '72. But I think they only reproduce the deluxe panels, and not the others.

User avatar
72RoadRunnerGTX
GTX (RS)
Posts: 591
Joined: Wed Dec 27, 2006 6:44 pm
My Cars: 1972 Road Runner/GTX
1972 Satellite Sebring
1972 Satellite Sebring(big block parts car)
Location: Seattle, Washington

Some changes this off season

Post by 72RoadRunnerGTX » Sat May 12, 2012 4:16 pm

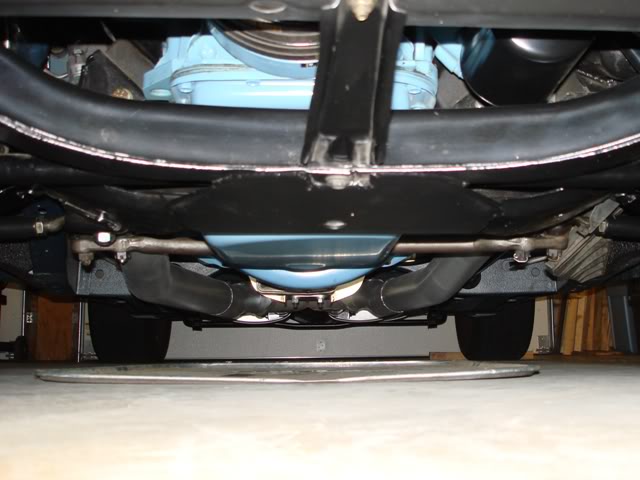

As much as I like the fit and finish of the TTI headers and exhaust system, ground clearance at the collectors has been a problem for me from day one. I enjoy driving the car on the street whenever I can but hated always having to watch out for potential contact with normal contours encountered in the road surface. Ordered up the 3” HP manifold head pipes from TTI for their 3” X-pipe system on the car, pulled the later HP manifolds(no heat riser) from the 400 waiting to go into the Sat project (a ways off yet), cleaned up the castings and gasket matched the ports. Considered painting them with a manifold paint but elected to go all natural. I was prepared for a change in the way the exhaust system sounds but still surprised at how much louder the Dynamax Super Turbos are with just the change to manifolds. Now has an intolerable drone at low engine speed/light to mid loads (cruising). I have some 14” Magnaflow SS resonators on order to install in the tail pipes similar to the factory muffler/resonator configuration on these cars. I will have to rework the tips and change the way TTI hangs their tail pipes to accommodate them correctly. I’ll post some shots after completion.
The MP reissue “six-pack” cam seems to like the manifolds much better, I have been able the jet down a bit on the carbs for better all-around drivability. Don’t plan to race the car, so not concerned with a potential loss in top end power as a result of this change.

Last edited by 72RoadRunnerGTX on Fri Jul 14, 2017 11:47 pm, edited 2 times in total.

User avatar
72RoadRunnerGTX
GTX (RS)
Posts: 591
Joined: Wed Dec 27, 2006 6:44 pm
My Cars: 1972 Road Runner/GTX
1972 Satellite Sebring
1972 Satellite Sebring(big block parts car)
Location: Seattle, Washington

Re: 1972 Road Runner/GTX restoration

Post by 72RoadRunnerGTX » Mon May 28, 2012 4:15 pm

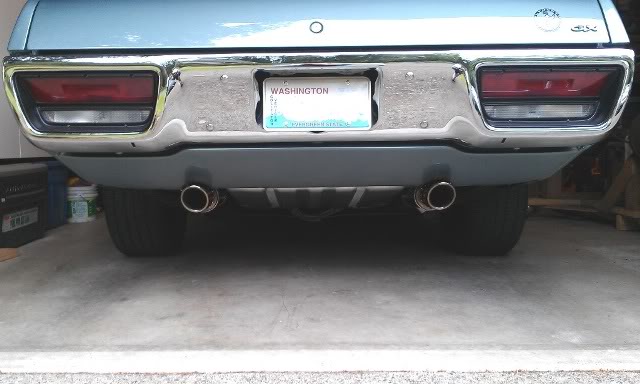

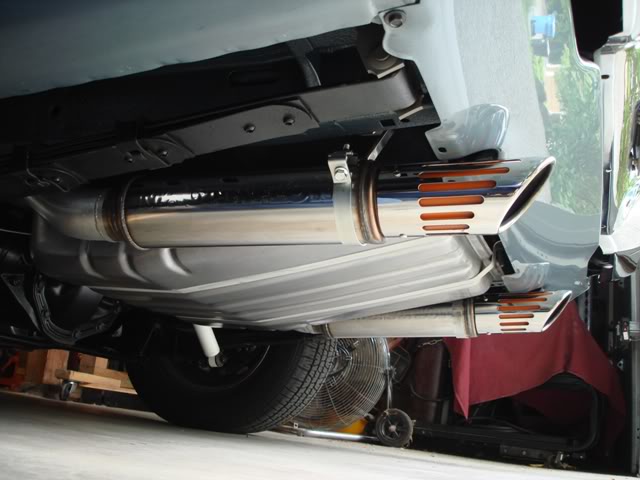

Update; completed the rework of the tail pipes and tips to install 3” resonators. The drone is gone and overall sound level is down significantly. My rework is modeled after the factory resonator installation including Actuate Exhaust’s reproduction stainless resonator hangers. Had to modify the TTI 3” tips and resonators to mount as the factory style resonator tips did.
Last edited by 72RoadRunnerGTX on Fri Jul 14, 2017 11:47 pm, edited 1 time in total.

PasiR
Satellite Sebring (RH)
Posts: 67
Joined: Mon Jan 28, 2008 9:46 am
Location: Finland

Re: 1972 Road Runner/GTX restoration

Post by PasiR » Wed May 30, 2012 6:59 am

Very nice work!
Where did you bought resonators? Part number?

Need to add those for my cars as well.

User avatar
72RoadRunnerGTX
GTX (RS)
Posts: 591
Joined: Wed Dec 27, 2006 6:44 pm
My Cars: 1972 Road Runner/GTX
1972 Satellite Sebring
1972 Satellite Sebring(big block parts car)
Location: Seattle, Washington

Re: 1972 Road Runner/GTX restoration

Post by 72RoadRunnerGTX » Wed May 30, 2012 9:49 am

Magnaflow 14419, from Summit Racing. Couldn't pass up the free shipping offer.

PasiR
Satellite Sebring (RH)
Posts: 67
Joined: Mon Jan 28, 2008 9:46 am
Location: Finland

Re: 1972 Road Runner/GTX restoration

Post by PasiR » Thu May 31, 2012 1:22 am

Thanks!!

1971SSP
GTX (RS)
Posts: 277
Joined: Sun Nov 09, 2003 5:33 am
Location: Detroit

Re: 1972 Road Runner/GTX restoration

Post by 1971SSP » Sun Jun 03, 2012 4:11 am

It looks great! :beer: I never get tired of looking at that car...I love that color.
Brian
1971 Satellite Sebring Plus

User avatar
71ChallengerSE
GTX (RS)
Posts: 144
Joined: Tue Oct 18, 2011 11:18 pm
My Cars: 1972 Road Runner RM23 Numbers Matching 340 4spd
1972 Satellite Sebring Plus EV2 1 Owner Family Special Order
1971 Challenger 383 R/T tribute
1971 Dodge Demon 'Sizzler'
1970 Dart Swinger 'Special' 340 pro-touring
1975 Dart Swinger/Scamp project confused 225 super six
Location: Virginia

Re: 1972 Road Runner/GTX restoration

Post by 71ChallengerSE » Mon Jun 04, 2012 11:09 pm

:bump:
Attachments
1972 Road Runner RM23 Numbers Matching 340 4spd
1972 Satellite Sebring Plus EV2 1 Owner Family
1971 Challenger 383 R/T tribute
1971 Dodge Demon 'Sizzler'
1970 Dart Swinger 'Special' 340 pro-touring
1975 Dart Swinger/Scamp project confused 225 super six

User avatar
72RoadRunnerGTX
GTX (RS)
Posts: 591
Joined: Wed Dec 27, 2006 6:44 pm
My Cars: 1972 Road Runner/GTX
1972 Satellite Sebring
1972 Satellite Sebring(big block parts car)
Location: Seattle, Washington

Re: 1972 Road Runner/GTX restoration

Post by 72RoadRunnerGTX » Tue Jun 05, 2012 1:17 am

71ChallengerSE wrote::bump:

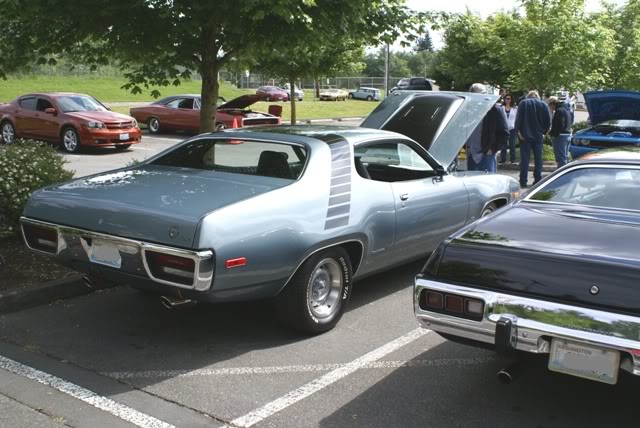

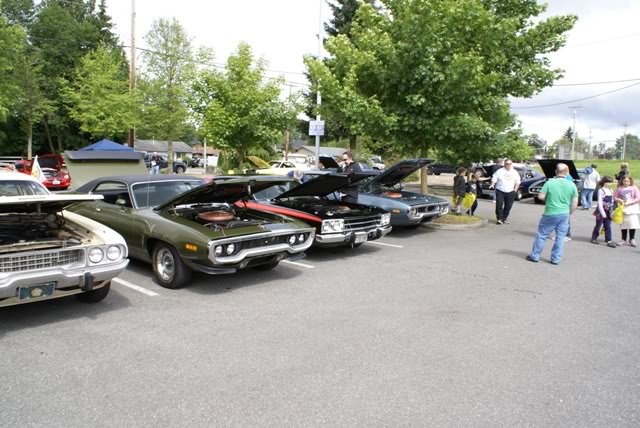

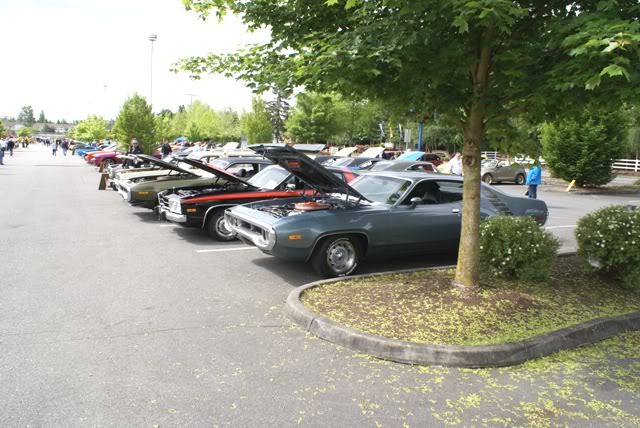

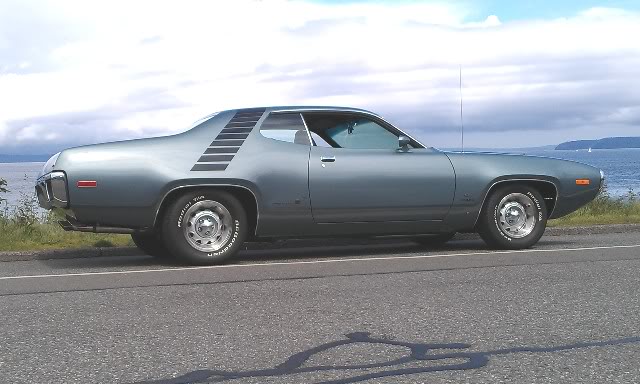

Those are from Sunday, the annual local club show here; Seattle Mopars Unlimited Spring Round-up 2012. Pretty good show overall, turn out appeared to be a bit down this year as some rain was in the forecast but never materialized.
Last edited by 72RoadRunnerGTX on Fri Jul 14, 2017 11:48 pm, edited 1 time in total.

nathan buckley
Road Runner (RM)
Posts: 41
Joined: Sun Jul 19, 2009 11:34 pm
My Cars: 1972 roadrunner x 2
Location: Melbourne

Re: 1972 Road Runner/GTX restoration

Post by nathan buckley » Mon Jun 11, 2012 5:38 am

thanks for the advice on the TTI drone exhaust. I just fitted mine last week and the noise is killing me. Almost makes your eardrums pop.

I saw the resonators... def thinking the same thing, so good to confirm.

But can you tell me about the 3 inch machine gun tips?

User avatar
72RoadRunnerGTX
GTX (RS)
Posts: 591
Joined: Wed Dec 27, 2006 6:44 pm
My Cars: 1972 Road Runner/GTX
1972 Satellite Sebring
1972 Satellite Sebring(big block parts car)
Location: Seattle, Washington

Re: 1972 Road Runner/GTX restoration

Post by 72RoadRunnerGTX » Mon Jun 11, 2012 3:33 pm

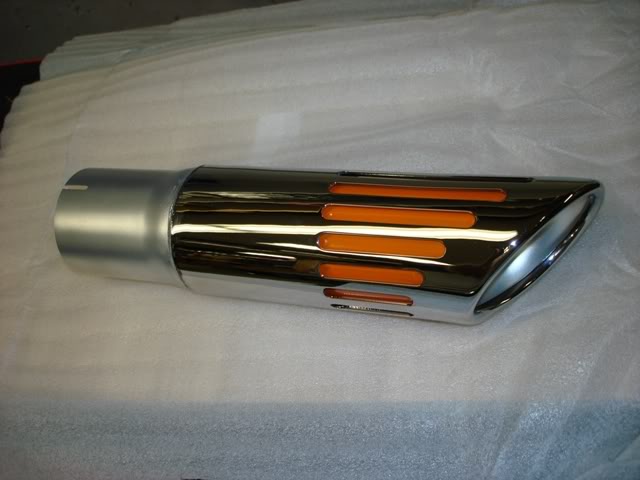

Here’s a shot of the TTI reproduction stainless steel tips for their 3” tail pipes I started with;
Needed to fit them to the Magnaflow 3" resonators directly, replicating as close as posible how the factory resonator tips mounted. It required cutting the tips apart and adding mounting hardware (welding 10-32 SS nuts) to the cut down resonator pipe connections. Didn’t think to take some pictures at the time, too busy concentrating on my countless somewhat precise hack saw strokes cutting through several layers of SS without scratching the polished outer surface. Added benefit, I can now disassemble the tips for cleaning and/or refinishing the inner sleeve when necessary. What's left;

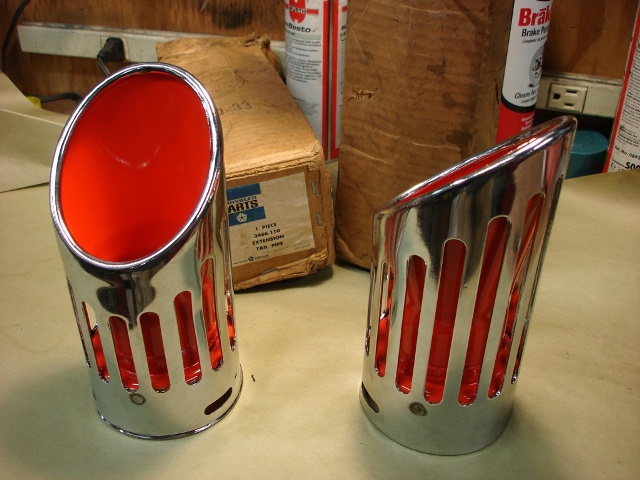

Here’s a shot of some very rare recently unearthed NOS factory resonator tips
Last edited by 72RoadRunnerGTX on Fri Jul 14, 2017 11:50 pm, edited 2 times in total.
