Adding A/C, need help with brackets, pulleys, belts

Post by 71Satellite98661 » Sat Jun 25, 2016 9:54 pm

Hi all, I'm adding A/C back to my factory air 71 with 440 and need a good diagram or photos of the final product, specifically the alternator mount/bracket(s), strap, idler pulley and belts. I have an alternator strap which is 13-3/8" in overall length. I also have a cast iron alternator mount which bolts to the RH cylinder head. This seems to put the alternator way out towards the RH fender. I hope I don't have C-body parts or something! I also have an two idler pulleys; (1) is heavy cast, the other seems to be stamped steel, not sure which is correct for 71. Any help appreciated!

moparmarks
Satellite Sebring Plus (RP)
Posts: 78
Joined: Fri Mar 25, 2005 3:21 pm
Location: Grand Jct Colorado

Re: Adding A/C, need help with brackets, pulleys, belts

Post by moparmarks » Sun Oct 23, 2016 9:44 am

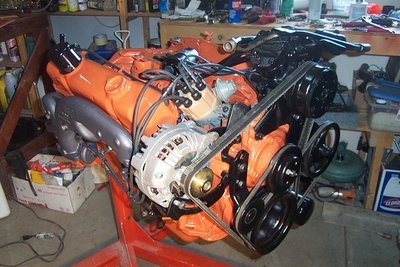

Here is the setup.
Attachments
weddingetc 114.jpg
Southwestern Sheet Metal
71-4 B-body

moparmarks
Satellite Sebring Plus (RP)
Posts: 78
Joined: Fri Mar 25, 2005 3:21 pm
Location: Grand Jct Colorado

Re: Adding A/C, need help with brackets, pulleys, belts

Post by moparmarks » Sun Oct 23, 2016 9:48 am

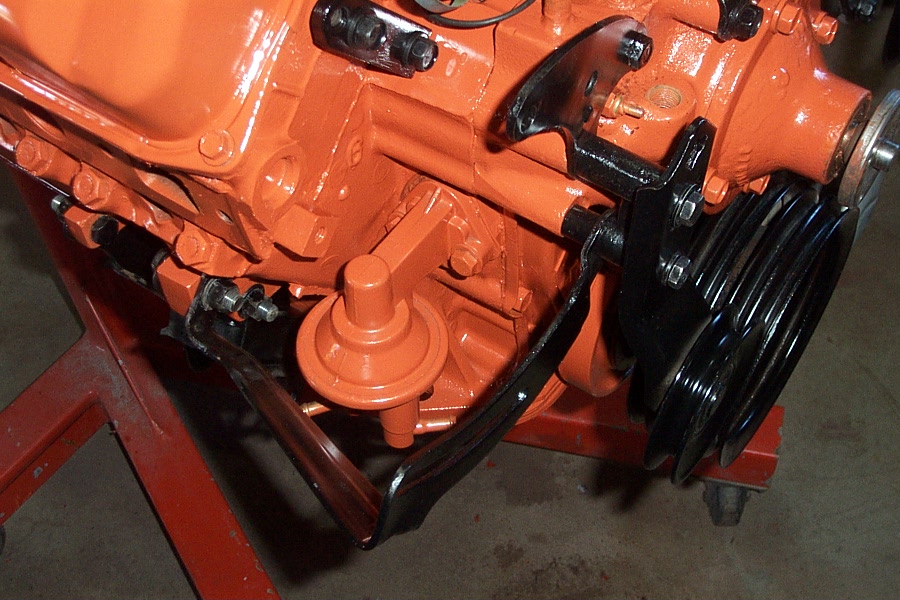

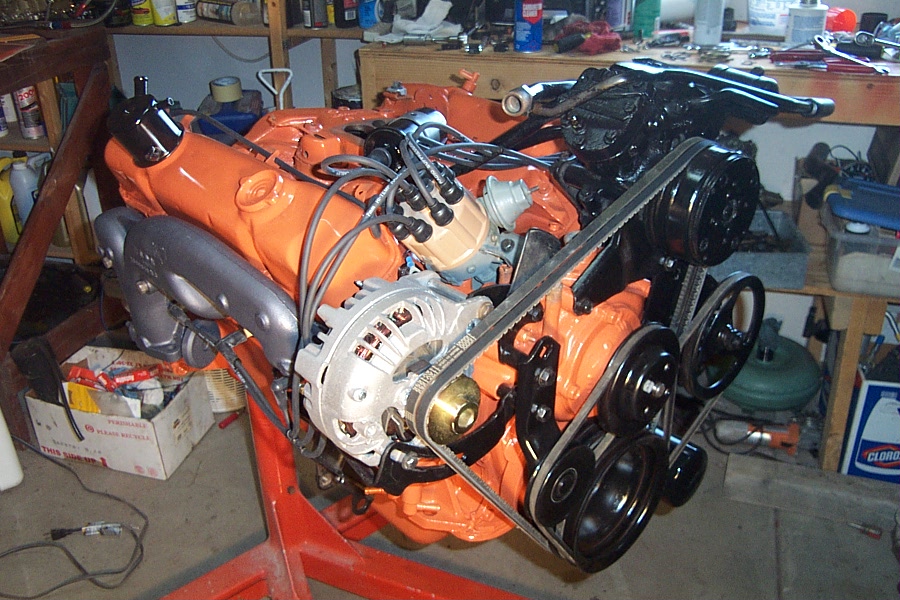

The Alt. bracket goes to the motor mount. 440 does not use the little black bracket mounted to the front of the right head.
Attachments
brackets 71 383 ac 3.jpg
