Engine Brackets

aerodynamic · Post by **aerodynamic** » Tue Apr 15, 2008 6:28 am

Does anyone have pictures (any at all would be helpful) of the brackets as mounted on the front of a big block? The power steering side would be particularly helpful. My ambitious helper pulled them off for cleaning and painting before I had a chance to snap some pix.

Thanks!

73X · Post by **73X** » Wed Apr 16, 2008 5:50 am

here are a few set ups. The 69 383 has the wrong pulleys on it, but power steering pump is right. It is the first pic, second is a 70 383, third is 72 400 and last is a 76 400. Hope these help. Let me know if you need more.

Dale

mopar71 · Post by **mopar71** » Wed Apr 16, 2008 6:25 pm

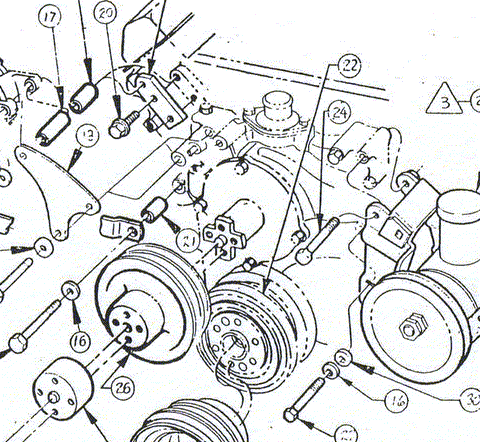

I dont know if you can use it but here goes!

72RoadRunnerGTX · Post by **72RoadRunnerGTX** » Thu Apr 17, 2008 1:28 am

Smellslike1974 · Post by **Smellslike1974** » Thu Apr 17, 2008 7:47 am

aerodynamic

Are you haveing air conditioning?

mopar71 · Post by **mopar71** » Thu Apr 17, 2008 10:01 pm

No, thats just an air commpressor!

Smellslike1974 · Post by **Smellslike1974** » Thu Apr 17, 2008 10:02 pm

mopar71 wrote:No, thats just an air commpressor!

thats not even his engine.

mopar71 · Post by **mopar71** » Thu Apr 17, 2008 10:04 pm

Your right,tell him to give it back to me its mine!

Smellslike1974 · Post by **Smellslike1974** » Thu Apr 17, 2008 10:05 pm

thats not very nice...

aerodynamic · Post by **aerodynamic** » Fri Apr 18, 2008 9:12 pm

You guys rock, thanks. I got it figured out now. I started it today for the first time in months. I hadn't bolted up the header collectors yet...GOOD LORD is that loud. Great pix by the way. I'm guessing the charcoal cannister above isn't used, since there's a gazinta and no gozata?

72RoadRunnerGTX · Post by **72RoadRunnerGTX** » Fri Apr 18, 2008 9:37 pm

I do intend to restore the evaporative recovery system back to full functionality, just havenâ€™t gotten around to pluming it back up yet. Need to sort out the new A/C lines first.

aerodynamic · Post by **aerodynamic** » Sat Apr 19, 2008 7:03 pm

It looks really good man. Now if I ever put A/C back on my car I'll know how that goes too.

Smellslike1974 · Post by **Smellslike1974** » Sat Apr 19, 2008 7:06 pm

Finally someone answers my question!

73sunroofSSP · Post by **73sunroofSSP** » Sun Apr 20, 2008 4:57 pm

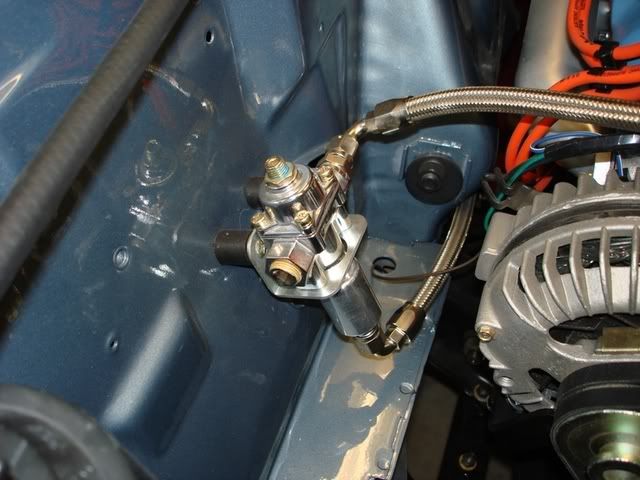

What is the part on the inner fender next to the alt

72RoadRunnerGTX · Post by **72RoadRunnerGTX** » Sun Apr 20, 2008 6:58 pm

Itâ€™s a fuel pressure regulator for the electric fuel pump. Note the effort to isolate vibration from the body, still pretty noisy.
