71-72 Road Runner Rear Swaybar Pics

Post by Ronnman » Thu Sep 27, 2007 9:51 pm

Can some one post some pics showing how the original rear swaybar is connected to the rearend? I know that there are brackets that bolt to the rear frame rail in front of the rearend. But I don't know how the rest is setup.
Thanks,
Ron
Top
User avatar
fourforty6pac
GTX (RS)
Posts: 441
Joined: Wed Feb 14, 2007 12:37 am
Location: Wisconsin
Contact:
Contact fourforty6pac

Re: 71-72 Road Runner Rear Swaybar Pics

Post by fourforty6pac » Fri Sep 28, 2007 11:31 am

Ronnman wrote:Can some one post some pics showing how the original rear swaybar is connected to the rearend? I know that there are brackets that bolt to the rear frame rail in front of the rearend. But I don't know how the rest is setup.
Thanks,
Ron
There is a plate that mounts with the shock plate and is held on with the u bolts.
Top
Ronnman
Satellite Sebring Plus (RP)
Posts: 83
Joined: Wed Apr 25, 2007 9:43 pm
Location: Slidell, LA

Post by Ronnman » Fri Sep 28, 2007 8:21 pm

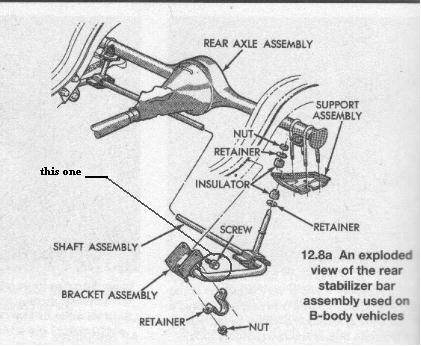

Someone at Moparts sent in a scan of the layout. I thought that I would share it with you.
Ron
Attachments
Rear Swaybar Assy.jpg
Rear Swaybar Assy.jpg (62.83 KiB) Viewed 11725 times
Top
71440 gtx
GTX (RS)
Posts: 1036
Joined: Tue Nov 25, 2003 2:34 am
My Cars: 71 gtx 71 340 duster
Location: I am here, or is it there? GIF image (animated, 49 frames)

Post by 71440 gtx » Fri Sep 28, 2007 8:34 pm

:stirpot: but they do not come on a 71 b-body 72 -74 b-body only :beer:
71 gtx 440 4speed air grabber blue on blue with white vinyl roofOption cassette player


Plymouth's gonna getcha!
There are 3 things that will live forever, cockroaches, Keith Richards, & slant 6
Top
72Rdrnner
GTX (RS)
Posts: 277
Joined: Thu Oct 26, 2006 6:42 am
Location: Bossier City, Louisiana

Re: 71-72 Road Runner Rear Swaybar Pics

Post by 72Rdrnner » Mon Oct 29, 2007 10:12 am

Deleted to save pix space
Last edited by 72Rdrnner on Tue Jan 08, 2008 10:46 pm, edited 3 times in total.

Righteous One Owner '72 Roadrunner
Top
72Rdrnner
GTX (RS)
Posts: 277
Joined: Thu Oct 26, 2006 6:42 am
Location: Bossier City, Louisiana

Rear sway bar (third pix)

Post by 72Rdrnner » Mon Oct 29, 2007 10:14 am

Deleted to save pix space
Last edited by 72Rdrnner on Tue Jan 08, 2008 10:50 pm, edited 1 time in total.

Righteous One Owner '72 Roadrunner
Top
CtownRunner
GTX (RS)
Posts: 587
Joined: Wed May 05, 2004 9:48 pm
Location: Cleveland, the North Coast

Post by CtownRunner » Mon Oct 29, 2007 3:18 pm

My god thats clean!
Top
72Rdrnner
GTX (RS)
Posts: 277
Joined: Thu Oct 26, 2006 6:42 am
Location: Bossier City, Louisiana

Post by 72Rdrnner » Mon Oct 29, 2007 5:15 pm

CtownRunner wrote:My god thats clean!

Yeah I kind of got carried away with powder coating. All the suspension, front and rear, drive shaft, gas tank, all engine accessory mounts, and a few other odds 'n ends. A bitch to keep clean though....especially since I put it back together to be driven and seen.

I get 1/2 off at the local Sonic when I drive it over for a meal! But I have to eat there not take it with me! I guess the manager is a Mopar guy!

Righteous One Owner '72 Roadrunner
Top
CtownRunner
GTX (RS)
Posts: 587
Joined: Wed May 05, 2004 9:48 pm
Location: Cleveland, the North Coast

Post by CtownRunner » Mon Oct 29, 2007 8:34 pm

Half of at Sonic not bad eye candy I guess. At least it will pay for itself in a few hundred or thousand or hundred thousand visits.
Top
6o4o
Road Runner (RM)
Posts: 41
Joined: Wed Feb 18, 2004 4:17 am
Contact:
Contact 6o4o

Post by 6o4o » Sat Nov 10, 2007 1:07 pm

that's a beautiful RR! I was already searching for that square rubber but had no luck! Thanks for the hint!
72 RR GTX, No. matching 440, 68 727, body TX9, B5 interior, got doorsticker, but no buildsheet
72 Satellite 318-Auto, all No.matching, with buildsheet

Both cars tasting now swiss cheese ;)

Top
72Rdrnner
GTX (RS)
Posts: 277
Joined: Thu Oct 26, 2006 6:42 am
Location: Bossier City, Louisiana

Post by 72Rdrnner » Sat Nov 10, 2007 1:51 pm

6o4o wrote:that's a beautiful RR! I was already searching for that square rubber but had no luck! Thanks for the hint!
Thanks...took a lot of time, not to mention a few bucks & beers!

If memory serves me right I got the square rubbers from Just Suspension. They are one piece and poly, vice rubber. I have a bill for a pair of something that cost $20 and I think that's what they were.

I originally thought about cutting a slit in them to put them on, but thought better about it and did it as I described.
