Inner Wheel House Flanges

[ct71rr]

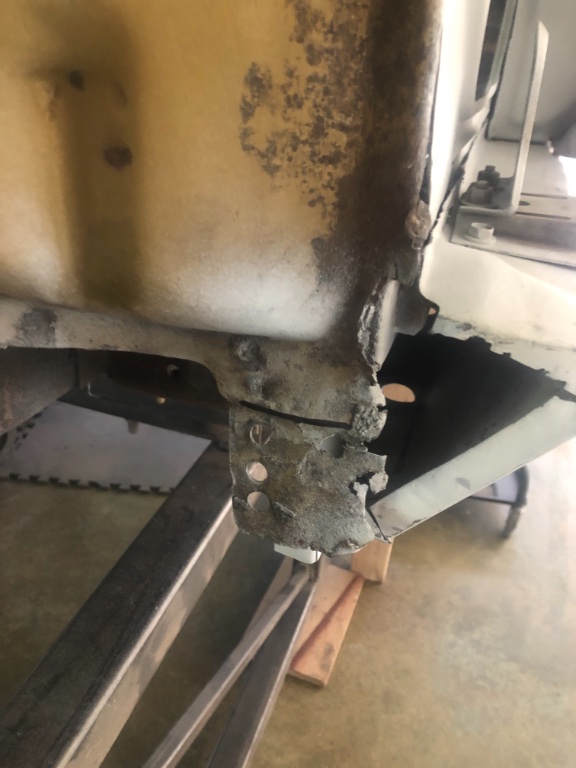

Hi all, any chance someone can post some picks of the flanges located at the bottom of the inner wheels houses? The pieces that connect to the rockers and outer wheel house. Both of mine are toast and I need to patch them.

Right Side:


Left Side:


[sdweatherman]

I can get you some pictures later this afternoon.
Scott.

[ct71rr]

Thank you!!

[sdweatherman]

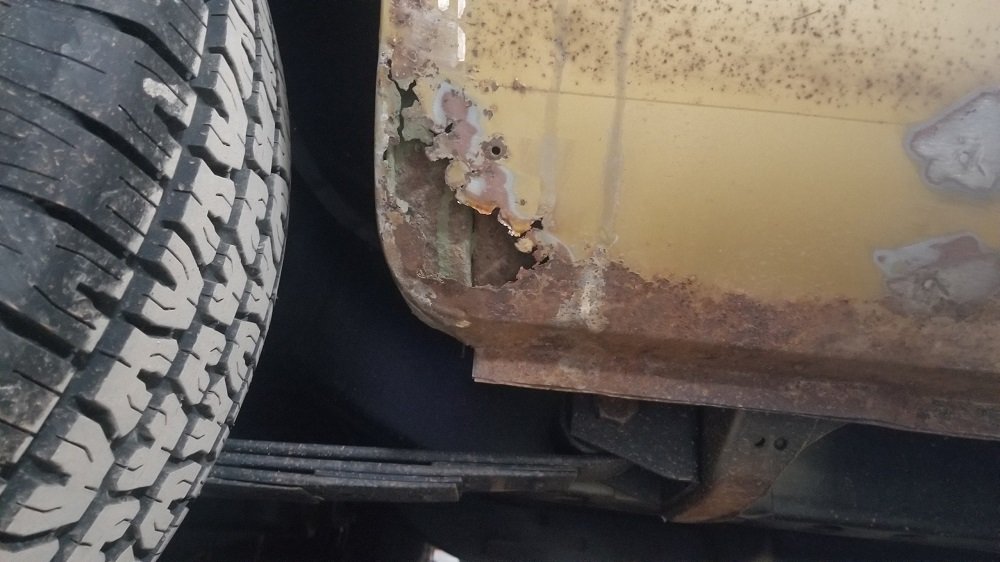

Don't know how much these will help - with my fatty 255s in the way. If you need some better angles and/or specific measurements, let me know. I can pull the wheel off real quick and get in there a little better. As you can see, I have a little rust going on in that same area. If you would like the full resolution pics - just PM me an email address to send them to.
Scott.

[ct71rr]

Thank you Scott, much appreciated!!

[ct71rr]

Hi again Scott, Any chance you can (or anyone else) get a closeup of the area circled in red? This is the area I need to create a patch for. Specifically, how the tab on the inner overlays the outer and by how much.

inner wheelhose closeup.JPG (41.06 KiB) Viewed 23646 times

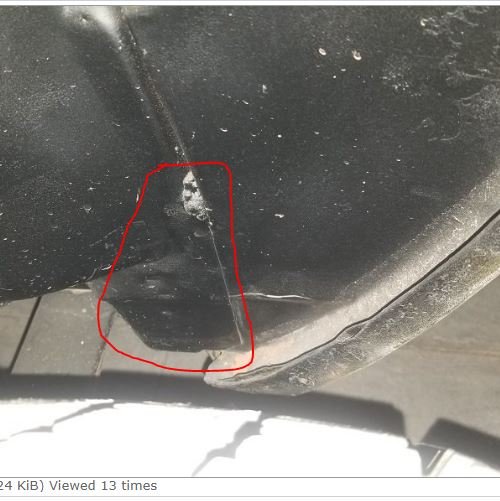

The area in red:

inner wheelhose closeup2.JPG (42.43 KiB) Viewed 23646 times

[sdweatherman]

I should be able to get some close ups sometime on Saturday.
Scott.

[sdweatherman]

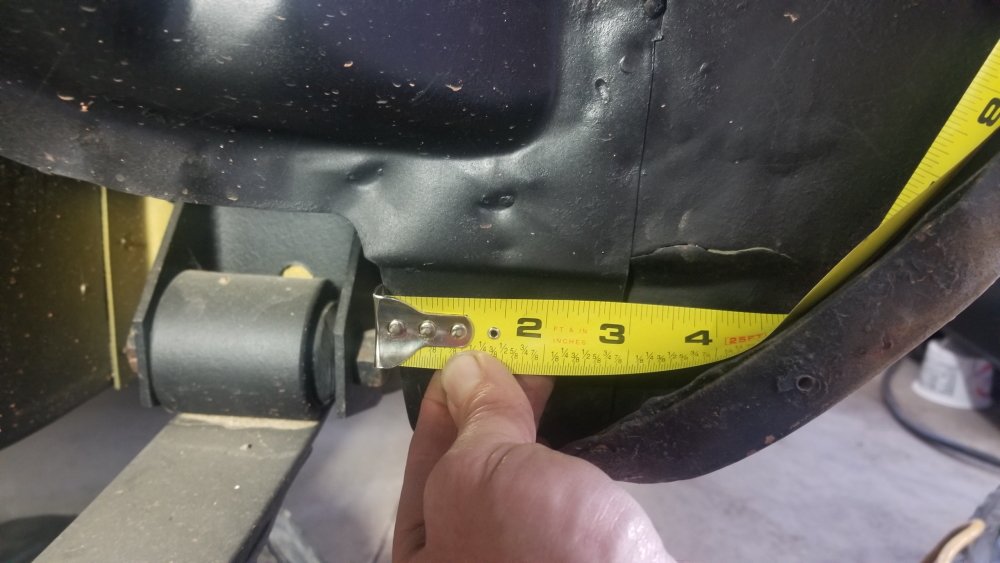

Here are some close up pics of that area. I tried to stick the tape measure in there for some reference. Hope this helps! Again - higher resolution pictures are available if you want to throw an email my way.
Scott.

[ct71rr]

Awesome, thank you!!!
